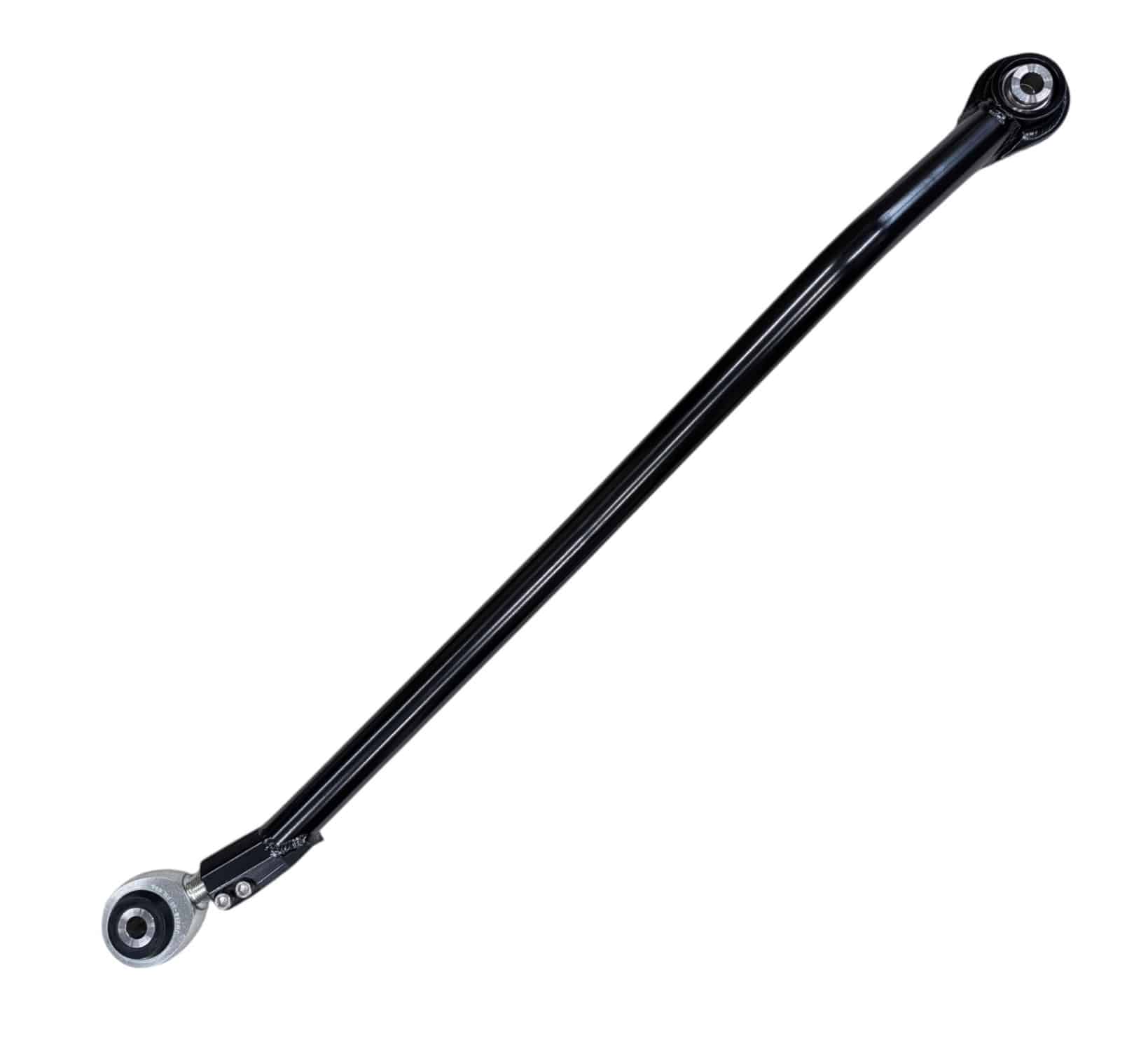

Dodge Ram, Heavy Duty Adjustable Track Bar, Years: 2014-Present 2500 4×4 2013-Present 3500 4×4
Price: $550.00
Building off the success of our Ford Trac bars we have decided to help out the Dodge guys too.

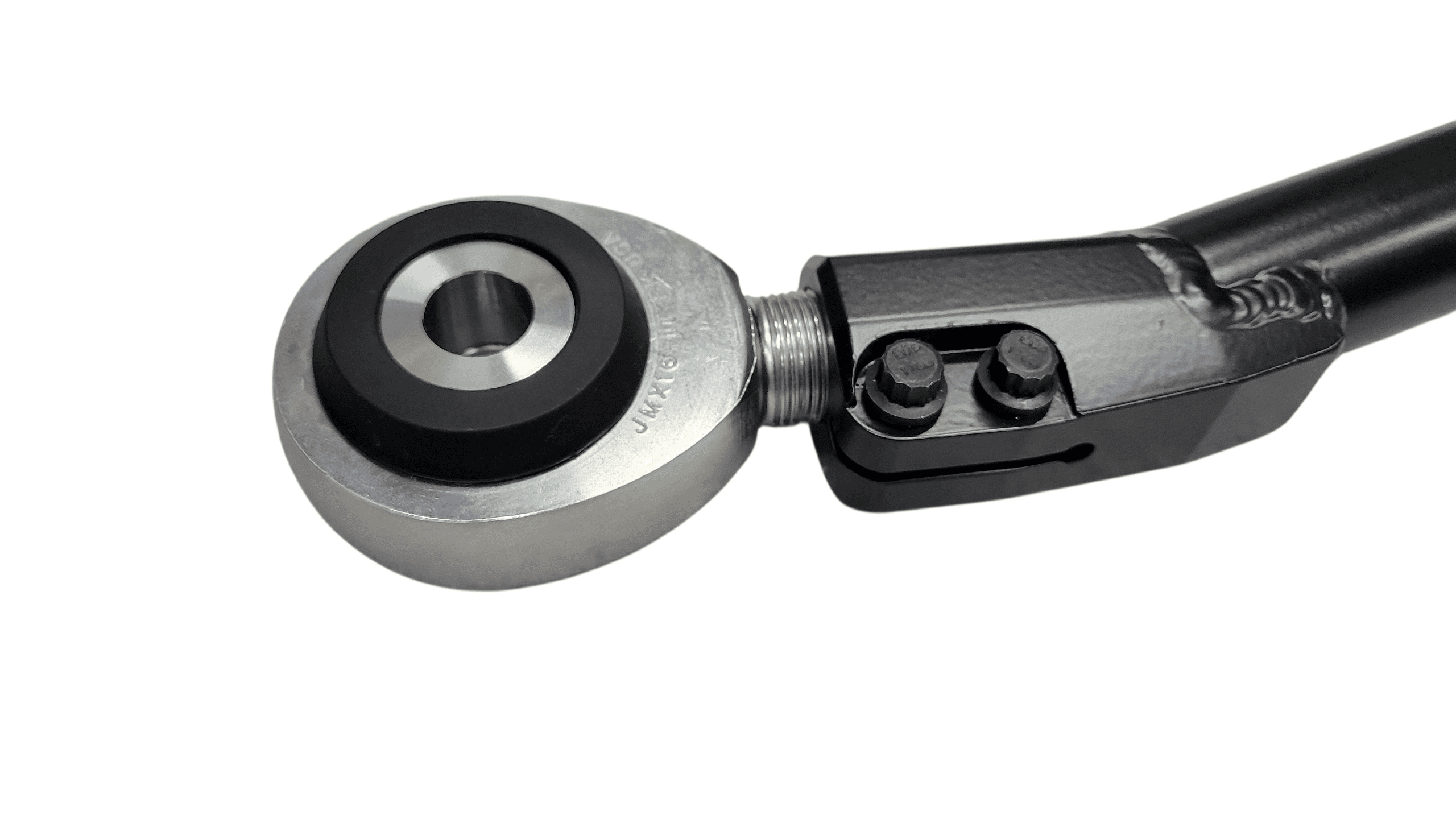

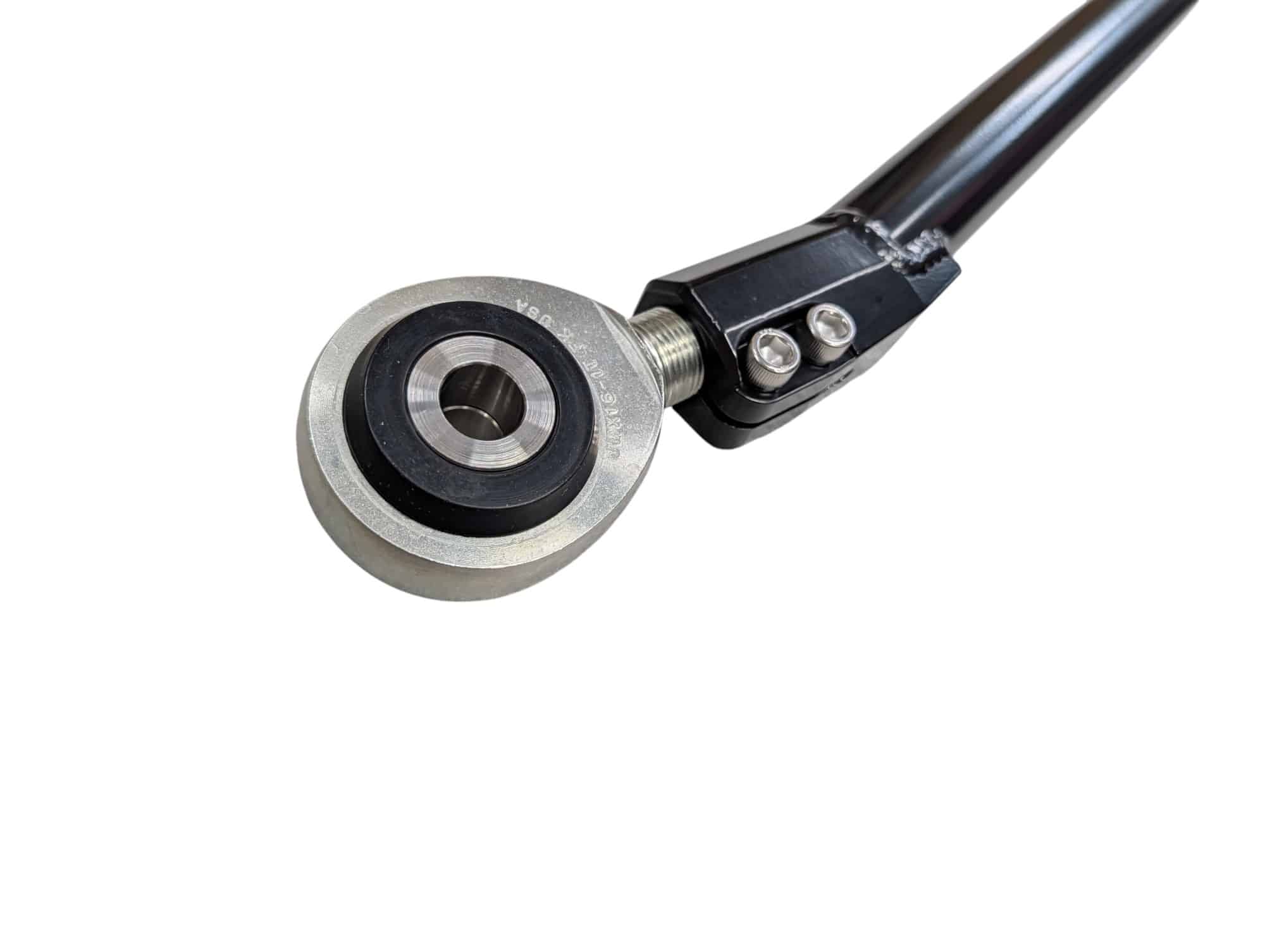

We started off by cramming the biggest heim joint we could into the axle end of our bar. That
would be a 1″ heim by FK Bearings, and as far as we know the biggest anyone has offered for
the 4th, 5th gen. Rams. That hiem is held in place with a custom pinch bung setup, no jam nut

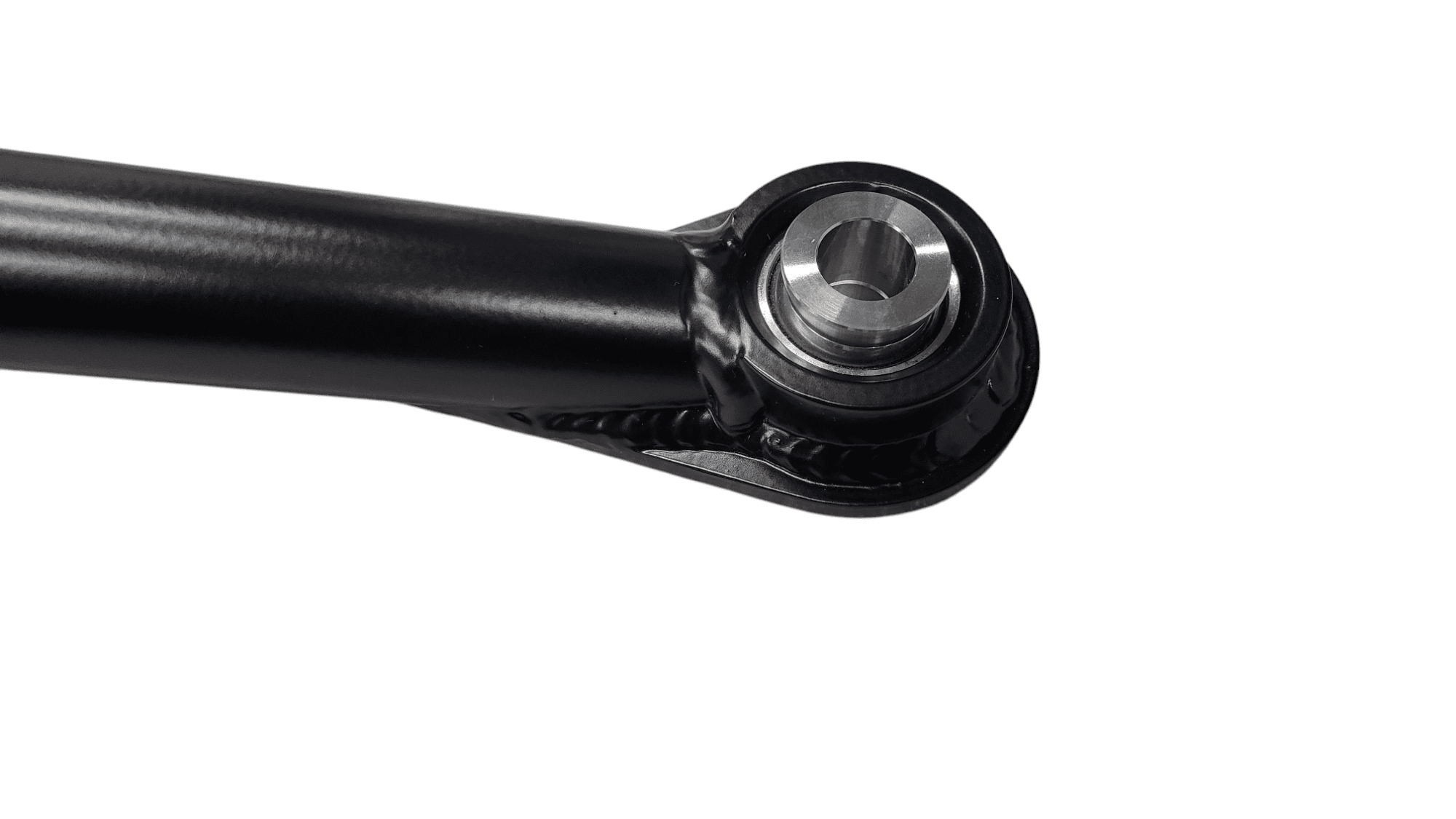

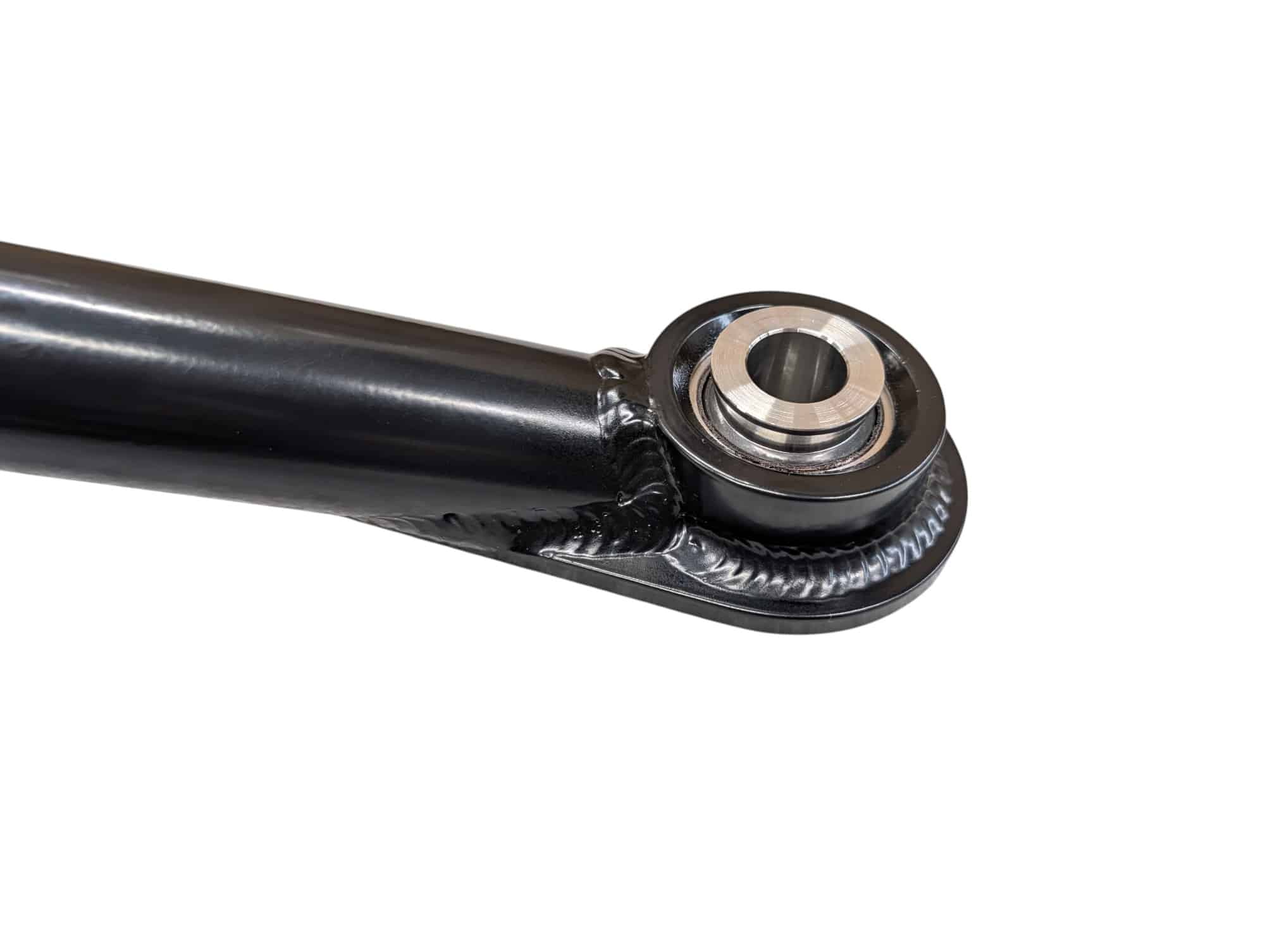

needed, just tighten the screws on the side to lock the joint in place. On the frame side we used
a dependable 1″ FK uniball.

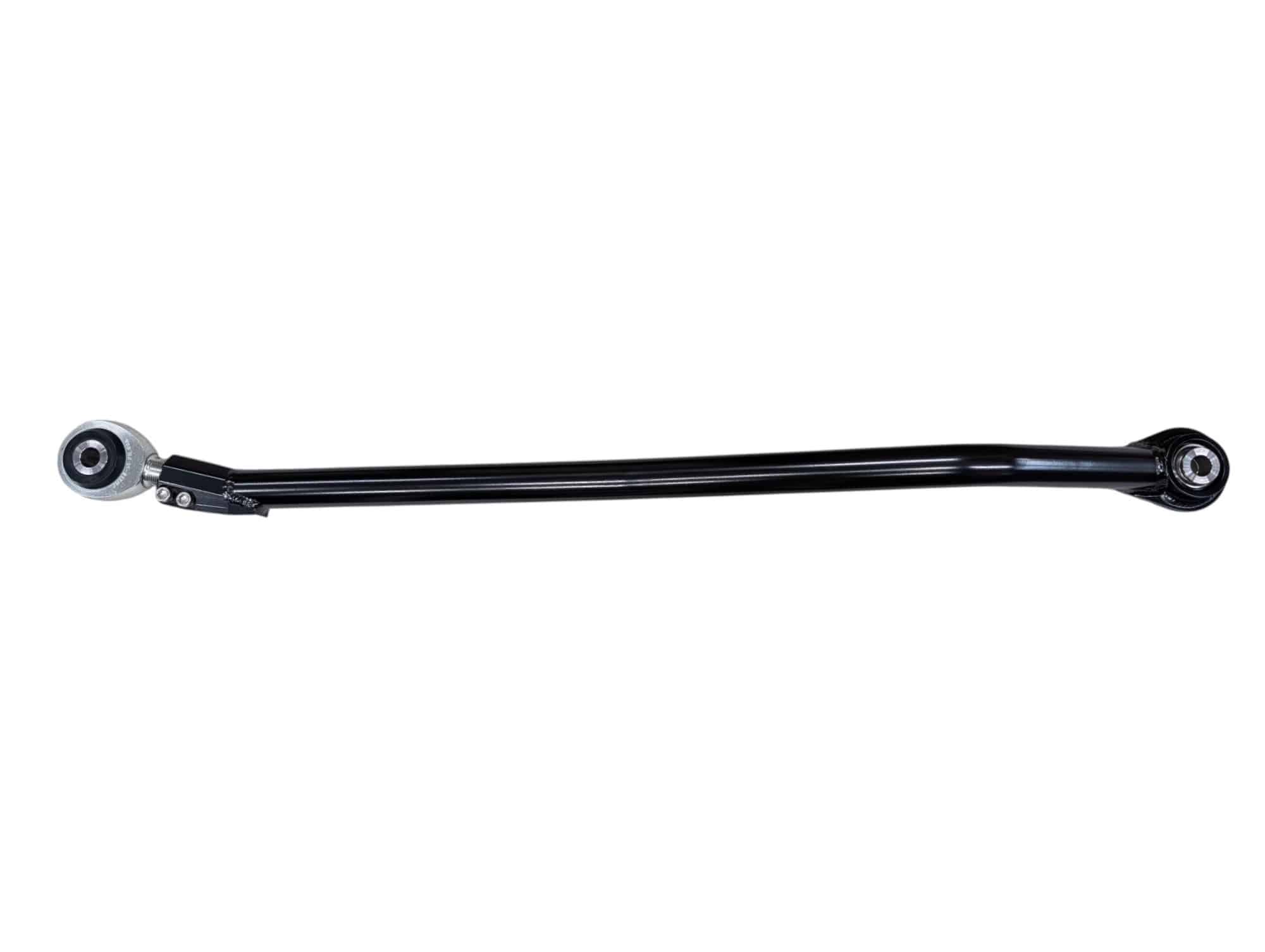

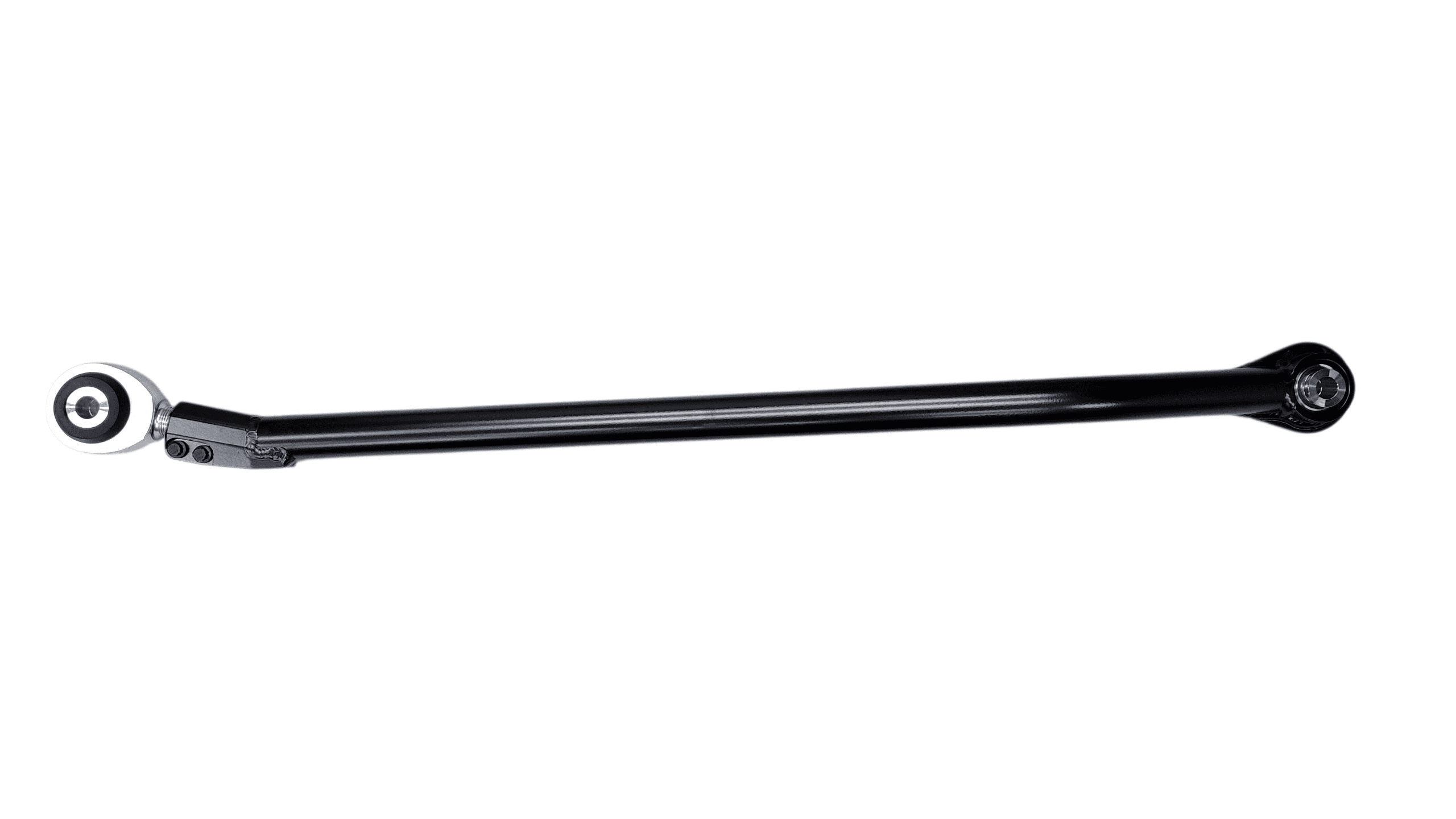

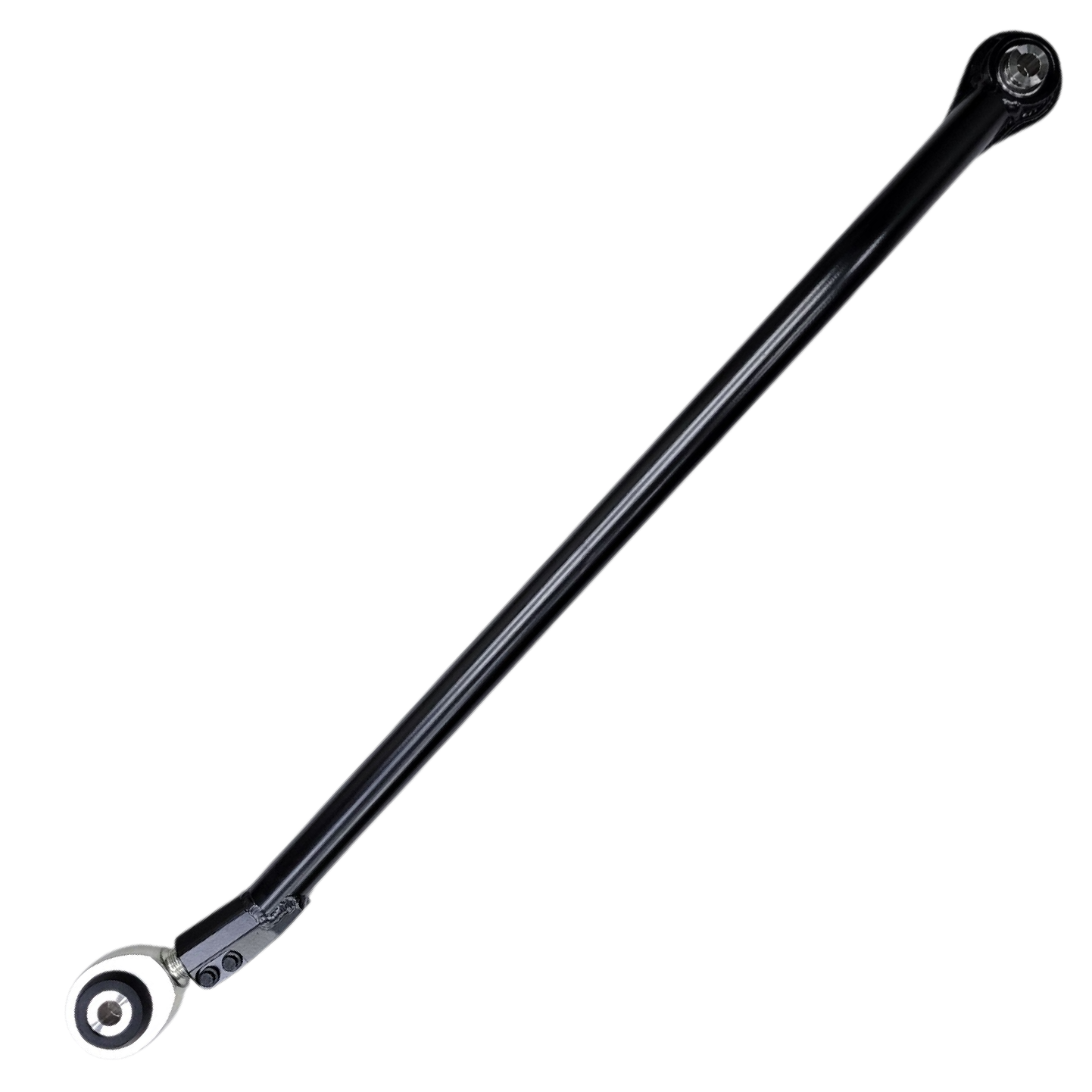

The bar itself is 1-1/2 diameter tube which was the biggest we could fit under the Dodge, but we
made up for that by using 3/8″ wall tubing.
We don’t believe in using rubber bushings in our track bars. The whole point of a track bar is to
keep the axle centered laterally under the truck, why would you add anything that would increase
deflection? If you say “to soften the ride”, well speaking from experience, you will appreciate the
extra responsiveness before ever complaining about any steering harshness.

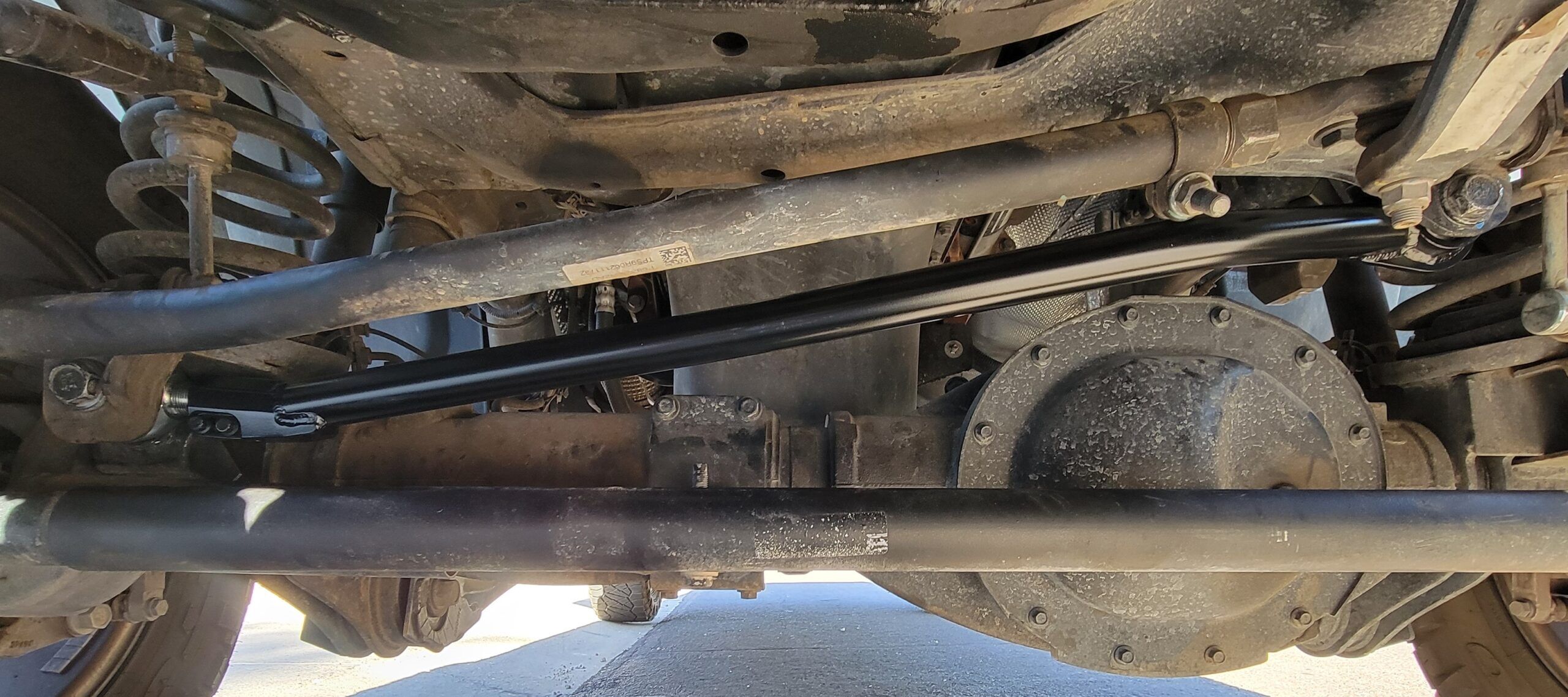

This direct bolt-on bar was designed to increase steering response and eliminate the effects of
deflection, thus neutralizing the causes of “Death Wobble.”
Lastly, our bar does not require a factory steering stabilizer relocation bracket in order for it to
clear.
This bar will work on stock and lifted trucks up to 4″ of lift, before needing a track bar drop
bracket at the frame

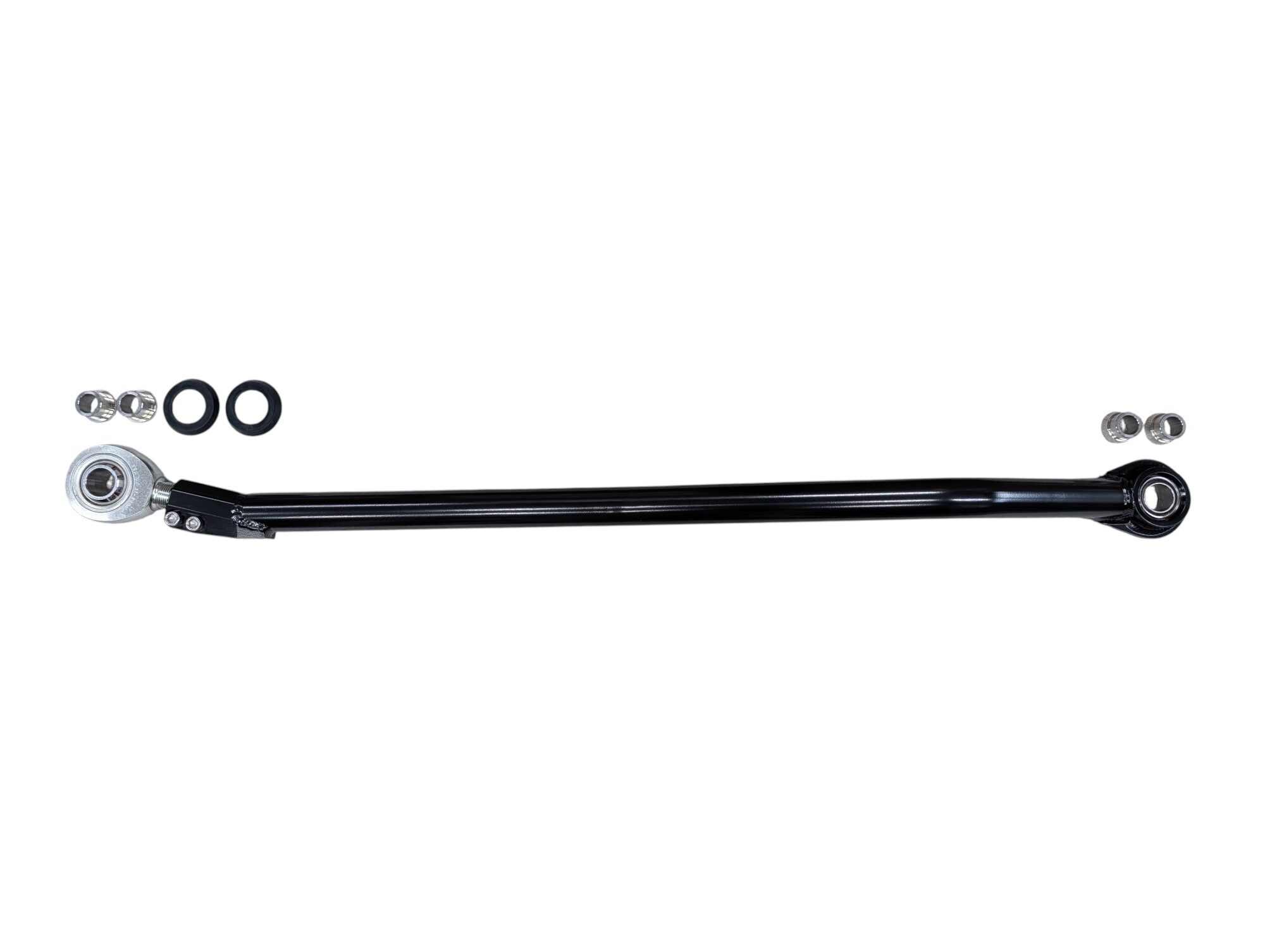

Components
–1″ RH Hiem joint, part # JMX16-1T
–1” Uniball, part # FKSSX16T
-Bar, 1.5” OD x .375” wall DOM steel tube, laser cut plate, welded and powder coated black
-Uniball hi-miss spacers, 17-4 Stainless steel
-Hiem spacers, 17-4 Stainless steel
-Hiem isolators, Silicon
Warranty
Baja Customs provides a Limited Lifetime Warranty to the original retail purchaser who owns the vehicle, on which the product was originally installed, for defects in workmanship and materials (exclusions apply, see below).
The Limited Lifetime Warranty excludes the following items, hiem joints, uniballs, and silicon isolators. These parts are subject to wear and are not considered defective when worn. Notwithstanding, Baja Customs may offer free replacement for parts subject to wear with sufficient evidence of premature part failure.
Baja Customs does not warrant any product for finish, alterations, modifications and/or installation contrary to Baja Custom’s instructions. Alterations to the finish of the parts including but not limited to painting, powder coating, plating and/or welding will void all warranties. Some finish damage may occur to parts during shipping, which is considered normal and is not covered under warranty.
This product is not designed nor intended to be installed on vehicles used in race applications or for racing purposes or for similar activities. (A “RACE” is defined as any contest between two or more vehicles, or any contest of one or more vehicle against the clock, whether or not such contest is for a prize). This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America.
Baja Custom’s obligation under this warranty is limited to the repair or replacement, at Baja Customs option, of the defective product only. All costs of removal, installation or re-installation, freight charges, incidental or consequential damages are expressly excluded from this warranty. Baja Customs is not responsible for damages and/or warranty of other vehicle parts related or non-related to the installed Baja Customs product. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been subject to accident, negligence, alteration, abuse or misuse as determined by Baja Customs.
Baja Customs reserves the right to super cede, discontinue, change the design, finish, part number and/or application of parts when deemed necessary without written notice. Baja Customs is not responsible for misprints or typographical errors within the website or price sheet.
