Class 10 / Sandrail Rear Susp.

Name: Class 10 / Sandrail Rear Susp. - Baja Customs
SKU: PN#BC5069-RS
Price: 400.00 USD
Availability: InStock

SKU: PN#BC5069-RS Category: Rear Suspension

Read the Terms of use in the tab below before purchasing. BUYER CANNOT RE-SELL OR DISTRIBUTE THESE FILES TO ANYONE! Files may only be used for the purpose of manufacturing said product.

Price: $400.00

Clicking the Buy Now button below, indicates you have read and accepted the terms of use.

Sandrail Rear Susp

Files types

SolidWorks models and drawings
IGES, and E-drawing models

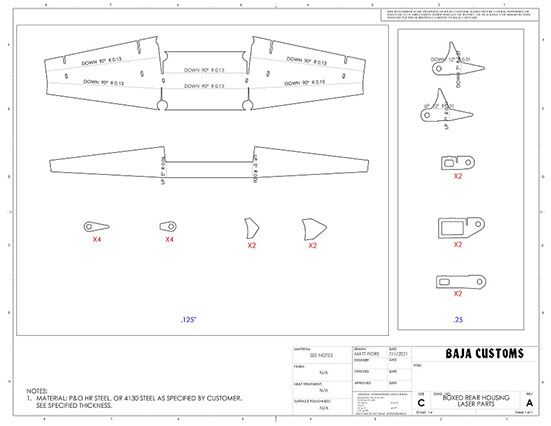

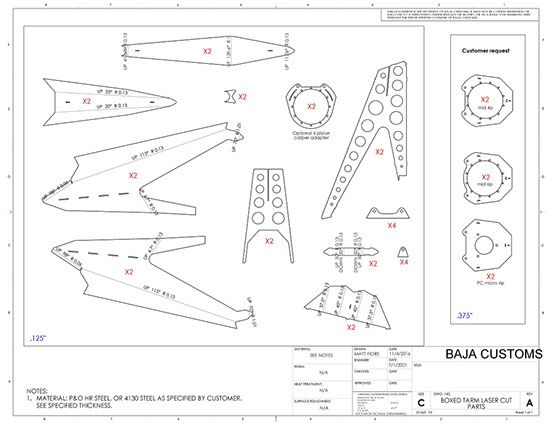

DXF (laser cut) files
2d, 3d PDF’s copies

Additional information

Trackwidth	84-86" (Depending on hubs and wheels used)
Hub plates included	934 4-pistion, 934 6-piston, PC Micro stub
Wheel Travel	24" (Approximate, depending on axles and hubs used)

Only logged in customers who have purchased this product may leave a review.

Reviews

There are no reviews yet.
